Automatic High Precision ZQ40 IBM Injection Blow Molding Machine for Industrial Applications

Наименование марки:	ZQ
Номер модели:	ZQ40
MOQ:	1 КОМПЛЕКТ
цена:	30000USD
Подробная информация об упаковке:	20'Конатинер
Условия оплаты:	Д/А, Д/П, Т/Т

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

Состояние:

Новый

Гарантия:

1 год

Тип выдувного формования:

Впрыскивание, расширение, экструзионное, впрыскивание

Пластик обработан:

ПП, ПЭ, ПК, ПС

Емкость:

3800-5000БПЧ

Диаметр винта:

40/45

Поставка способности:

10 комплект/месяц

Выделить:

20kw IBM Injection Blow Molding Machine

Automatic IBM Blow Molding Machine

High Precision IBM Molding Machine

Характер продукции

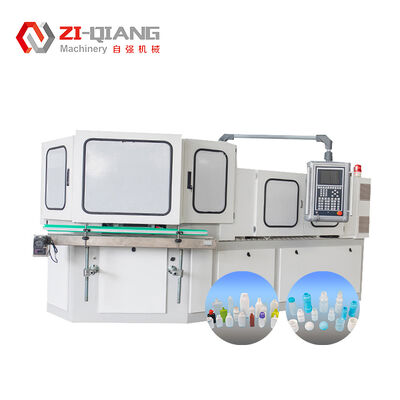

ZQ40 IBM Injection Blow Molding Machine

The Automatic High Precision ZQ40 IBM Injection Blow Molding Machine delivers exceptional performance for demanding industrial applications. Engineered for reliability and precision, this machine ensures consistent production quality in manufacturing environments.

Automatic operation for continuous production cycles

High precision molding capabilities for superior product quality

ZQ40 model designed for industrial-scale manufacturing

Robust construction for reliable performance in demanding environments

Optimized for injection blow molding processes

Technical Specifications

Injection System
Screw Diameter	mm	40
Screw L/D	%	21:1
Injection weight	g	140
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	140
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mold Specifications
Max.Platen size(L*W)	mm	480*340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	220
Hydraulic System
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	4
Total Power	KW	20
Operating power	%	52-70
Other Parameters
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	31.31.7
Net weight	Ton	3.8

Samples

Automatic High Precision ZQ40 IBM Injection Blow Molding Machine for Industrial Applications 1

1. Kitchen scene
Used for packaging ingredients/seasonings: such as whole grains, dried goods, edible oil, vinegar, etc. (corresponding to the bottle with a label in the upper left corner);
Storage of cleaning supplies: such as dishwashing liquid, fruit and vegetable cleaner, etc. (corresponding to the bottle with foam pattern in the upper right corner).
2. Bathroom/washing scene
Repackaged personal care products: including shampoo, body wash, conditioner, hand sanitizer, etc. (corresponding to the large-capacity bottles in the middle row);
Store personal care products: such as moisturizing sprays, toners, body lotions, etc. (corresponding to the spray bottle on the right with the label "Soothing Toner").
3. Portable/storage scenarios
Travel portioning: Portioning large-capacity personal care products (such as moisturizing sprays) into small bottles for easy carrying (corresponding to the bottles in the storage bag at the lower right corner).
Home organization: Uniformly store scattered items from the bathroom and kitchen to make the space neater.

Machine Advantages

No.	ZQ Series IBM Machine	Other Products
1	Down-setting the clamping cylinder ensures the deck plate clean	The clamping cylinder set on the deck plate causes oil pollution
2	Unique pressurization technology reduces system energy consumption with no leakage	Pressure cylinder participates in action, leading to high energy consumption and oil leakage
3	Pressure structure without prefill valve or oil tank ensures stable, high clamping force	Pressure structure with prefill valve and oil tank causes temperature rise and reduced clamping force
4	Comprehensive automatic inspection system for air pressure, cooling water, mold temperature, and production anomalies	Necessary inspections require manual testing
5	No external oil pipes, eliminating oil pollution	External oil pipes cause oil pollution
6	Compact machine height: approximately 1.7M	Standard machine height: approximately 2.3M
7	Aluminum equipment cover ensures complete closure and security	Plastic coating equipment cover, not fully closed
8	Clamping beam directly on the mold prevents burrs on long and large bottles	Clamping cylinder on the template causes burrs on long and large bottles
9	Enhanced safety protection functions ensure operational stability and security

Company Profile

Zhangjiagang Ziqiang Machinery Co., Ltd. specializes in the research, development, production, sales, and trade of automatic one-step injection-blow molding machines and supporting molds. Located in Zhangjiagang City with convenient transportation access.

Our experienced engineering team provides comprehensive "pre-sale", "sale", and "after-sale" services. Our product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging sectors.

Material Compatibility: HDPE, LDPE, PP, PS (lactic acid bacteria), high transparent PS, ABS, environmental corn material, EVA, PCTG and more.

FAQ

Q: Can we visit your factory?

A: Yes. We are located in Zhangjiagang city near Shanghai. We provide airport pickup from Shanghai Pudong International Airport or Hongqiao International Airport. Online video visits are also available.

Q: How can we get the exact price of plastic machine?

A: Contact us with your product size, shape, annual quantity, and photos. We will recommend suitable machine models with detailed quotations.

Q: Do you provide any spare parts with machine?

A: Yes, we include all necessary spare parts before shipment. Contact us for the complete packing list.

Q: How about your after-sale service?

A: We provide one-stop "turnkey" solutions with 24-hour debugging and after-sales personnel on standby.

Q: What is the lead time?

A: Customized machines typically take about 45 days after deposit. Stock machines are available for fast shipment. Actual production cycles vary based on customization requirements.

Q: What is the warranty period for your machine?

A: One-year warranty for components with ongoing technical support.

Q: Do you provide custom machines?

A: Most of our machines are customized. We design equipment according to customer products to ensure efficiency and stable performance.

Q: How can we install the machine when it arrives?

A: We provide comprehensive installation guidance and can dispatch experienced engineers to assist with installation and debugging as needed.
